Technical parameter
Model number |
TM1000 |
Coating method |
Wire rod coating |

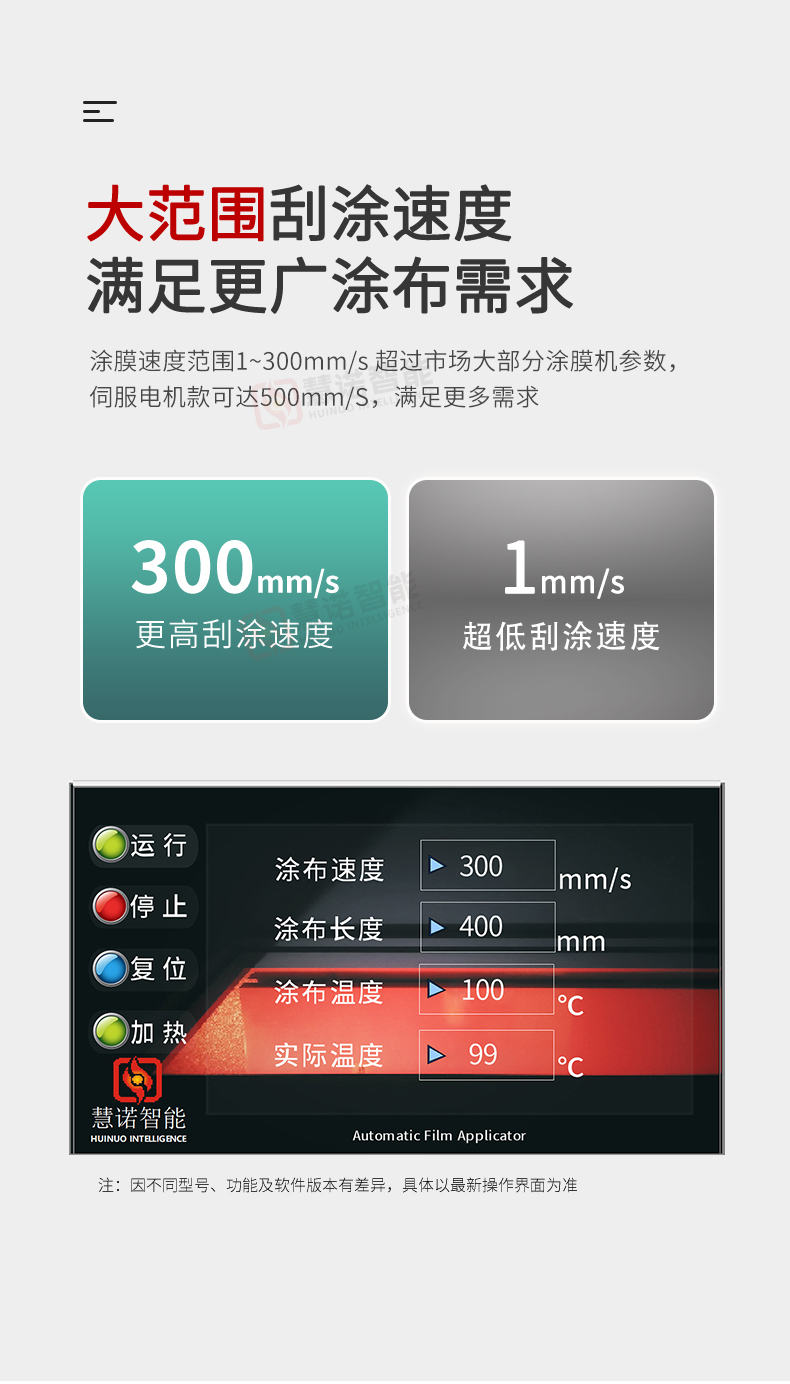

Coating rate |
1~300mm/s stepless speed regulation (customizable) |

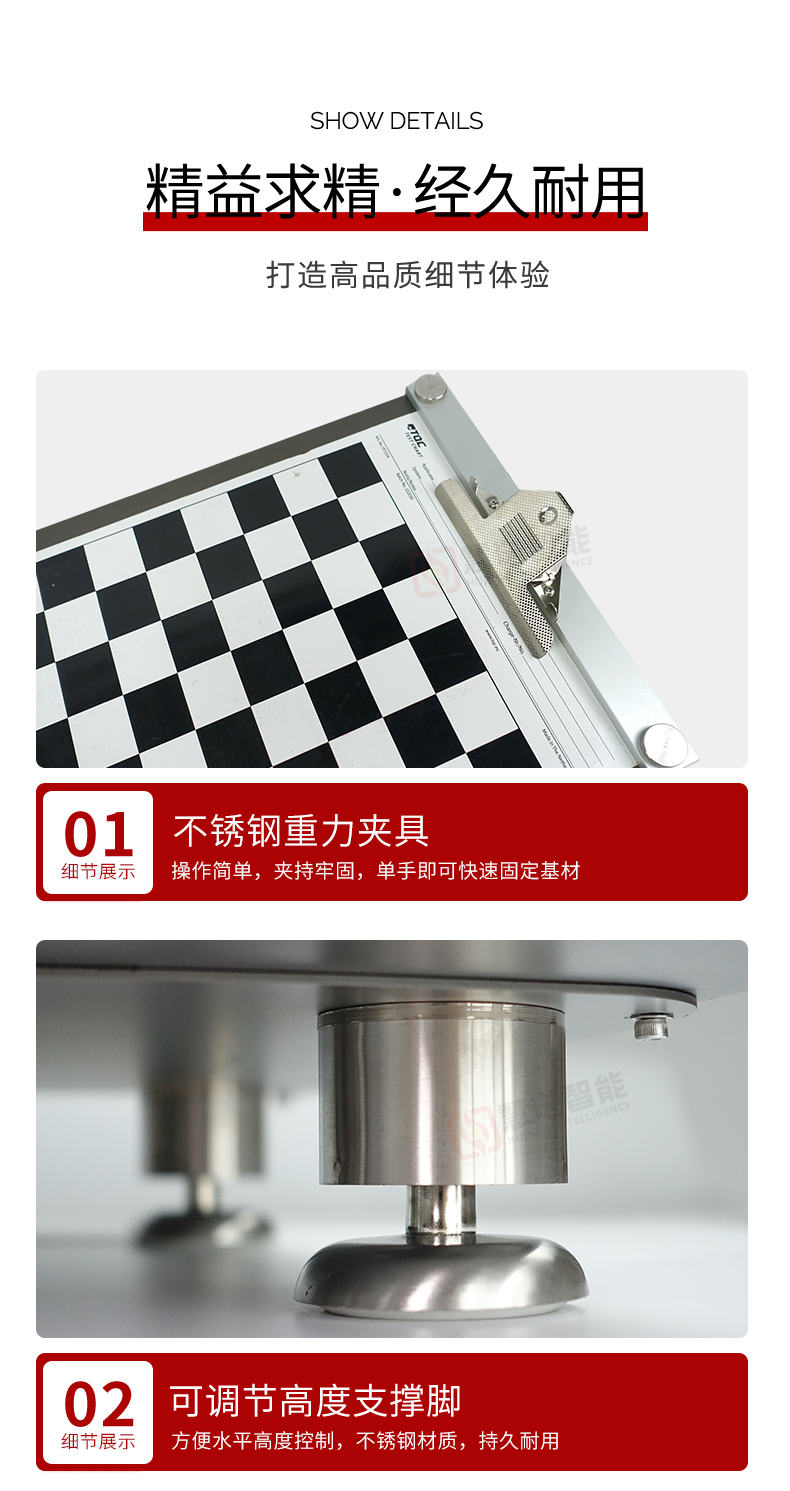

Substrate fixation method |
jig |

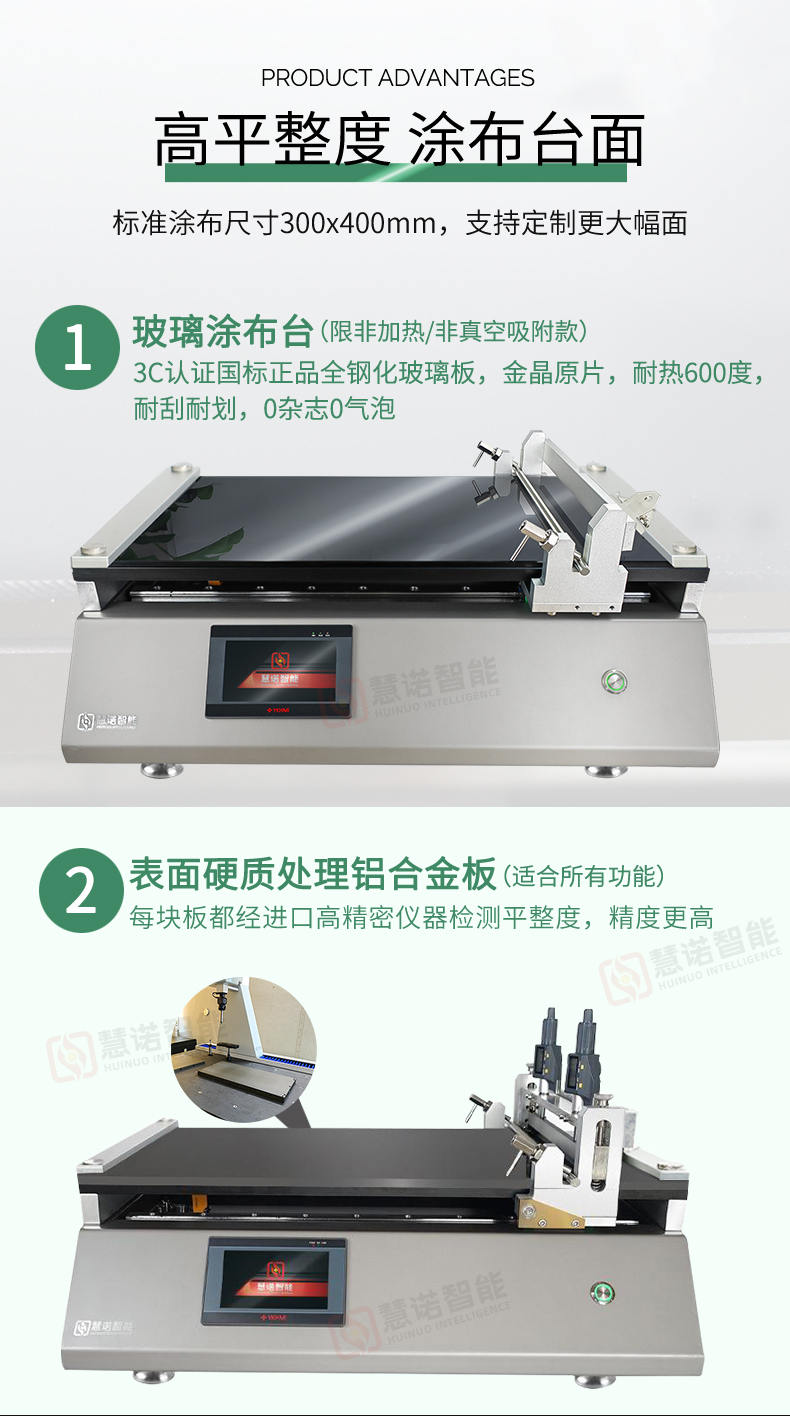

Coating table material |
Glass plate |
Coating platform size |
300*600mm |
Film thickness |

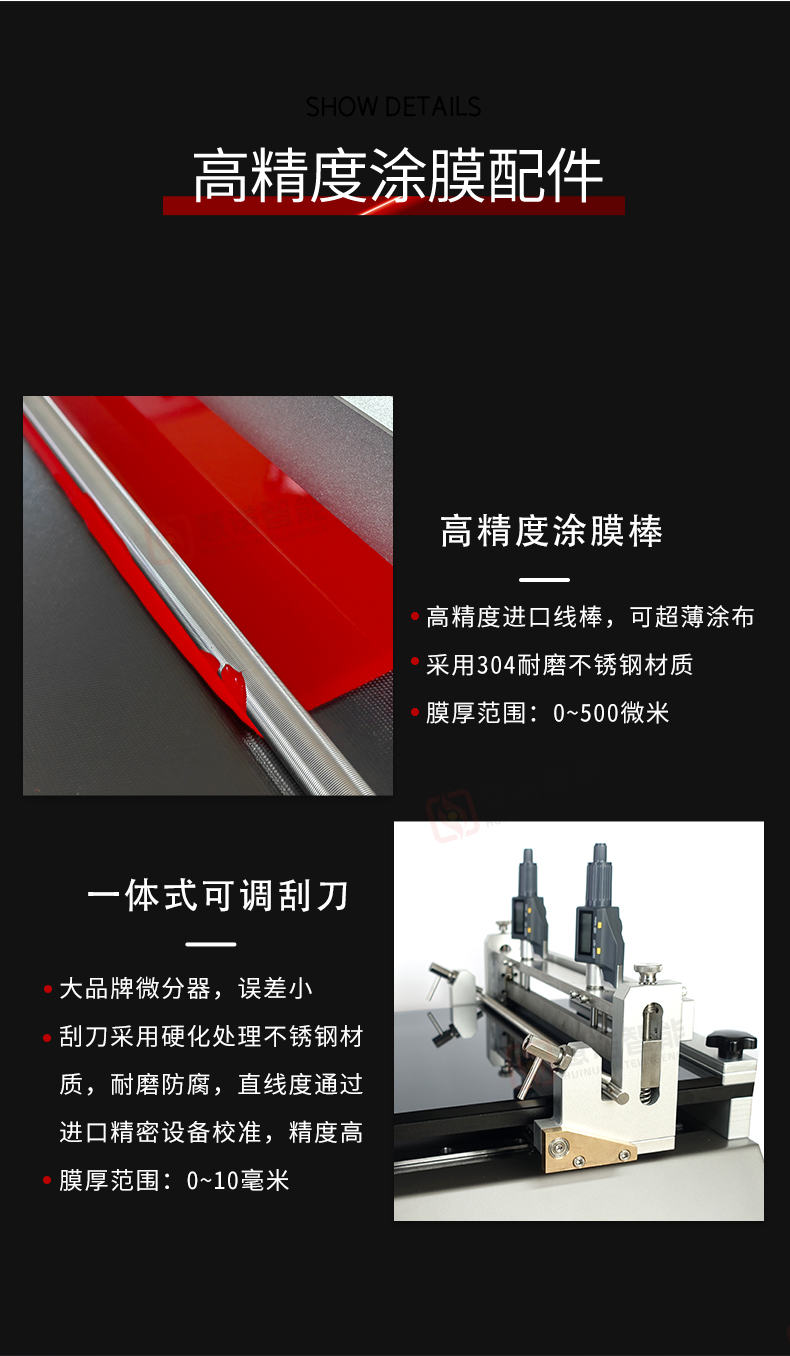

Controlled by wire rod, equipped with high precision imported wire rod |
Wire rod coating accuracy |
+ / - 0.001 mm |
Coating format |
300mm*400mm (customizable) |
Display screen |
Color LCD touch screen |
Host power supply |
100V~220V/50~60HZ |
Overall dimension |
658*438*205mm (L*W*H) |
weight |
39.7 kg |
Optional function |
Scraper, heat, vacuum adsorption |
power |
400w |
Operation language |
Chinese (English can be customized) |
Gross weight |
64kg |
Package size |
515*770*560mm |
