Product introduction

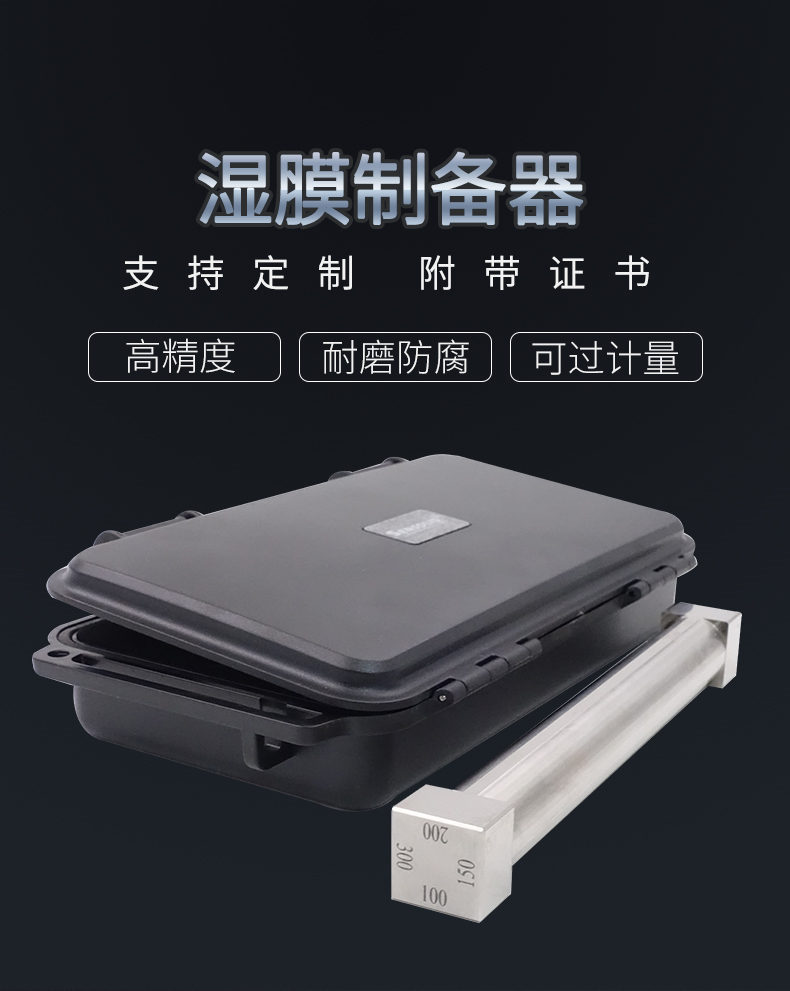

The four-sided film applicator is an experimental film applicator with an accuracy of ±2 microns. It has two coating widths of 80 and 160mm. It is made of high-carbon chromium wear-resistant stainless steel with good corrosion resistance. The wet film preparator will carry out precision testing before leaving the factory, adopt imported coordinate testing, and attach factory testing data report, which can withstand measurement. SZQ four-sided coating machine is suitable for resin, paint, glue, new materials, polymer materials, and other fields of sample film proofing. Support non-standard customization. Can also support the laboratory automatic coating machine for automatic coating.
Product characteristics
1, 9Cr18Mo high hardness stainless steel material, with good wear resistance and corrosion resistance, hardness value of 50~55HRC.
2, accuracy up to ±2μm, to ensure the accuracy of the experiment
3, the surface is smooth, diverse styles, wide application range, support custom specifications
4, the use of imported coordinate detection accuracy, with factory testing report, can withstand measurement
Technical parameter
Model number |
SZQ-230 500/1000/2000/2500 |
type |
All sides |
Wet film thickness |
500μm, 1000μm, 2000μm, 2500μm |
Coating width |
230mm |
precision |
Plus or minus 2 microns |
material |
9Cr18Mo stainless steel |
